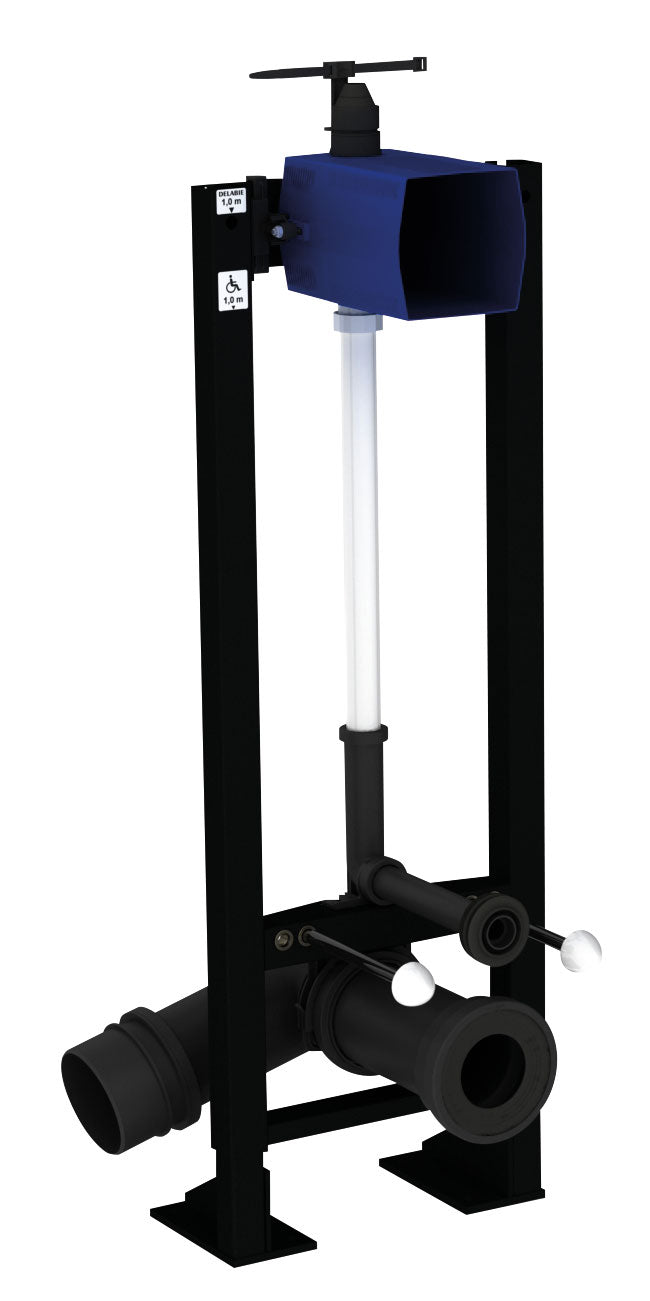

TEMPOFIX 3 Self-supporting frame system for toilet
For TEMPOMATIC electronic valve, mains powered - Outlet Ø110
Self-supporting frame system for wall-hung toilets, set 1/2:
Frame system in black epoxy steel:
- With wide feet for installation on load-bearing floor.
- Chassis height adjustable between 0 and 200mm (with label at 1m).
- For walls between 10 and 120mm.
- Flush pipe Ø 32 with supply gasket Ø 55.
- ABS waste pipe with PEHD Ø 110 connection sleeves with sealing ring, with 2 adjustment points.
Waterproof recess box: for flush system without cistern, directly connected to the water supply.
- Compatible with TEMPOMATIC electronic valves with dual control or Connect for toilets.
- Mains power supply 230/6 V.
- Air intake built into the recess box.
- Integrated stopcock and flow rate control.
Delivered pre-assembled.
Complies with standard NF D12-208.
30-year warranty.
Order with control plates reference 464000, 464050, 465000 or 465050.

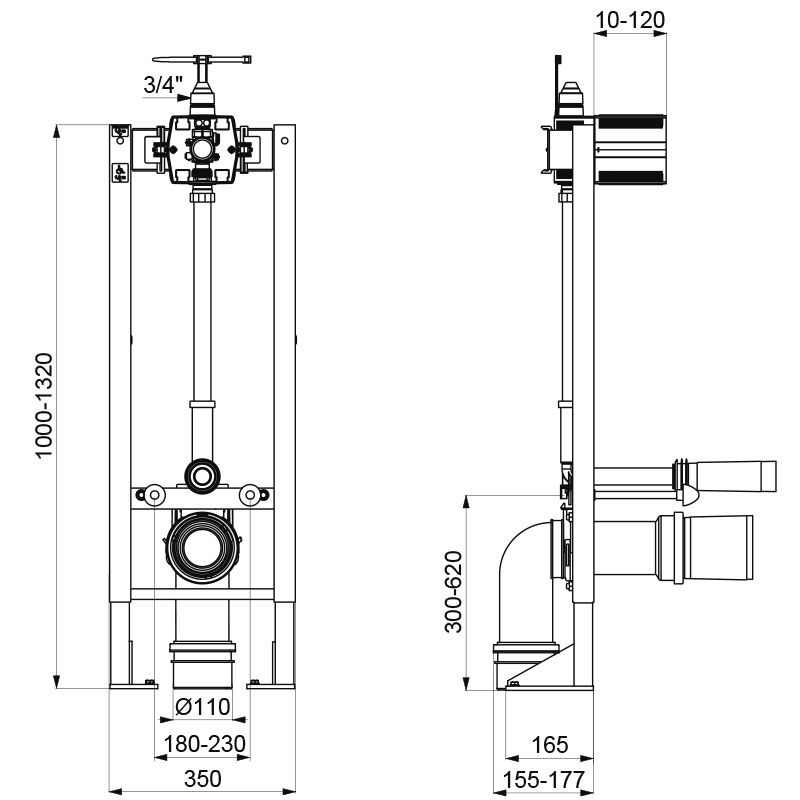

| Connection | 3/4" |
| Technology | Electronic and self-closing |
| Height | 1000 to 1320 mm |
| Depth | 157 - 177 mm |
| Width | 350 mm |
| Diameter | Outlet Ø 110 |
| Finish | Black epoxy steel |
| Warranty |
Specifications
| Article number | 8146564005DE |
|---|---|
| Brand | Delabie |
| Weight | 14.3 kg |
