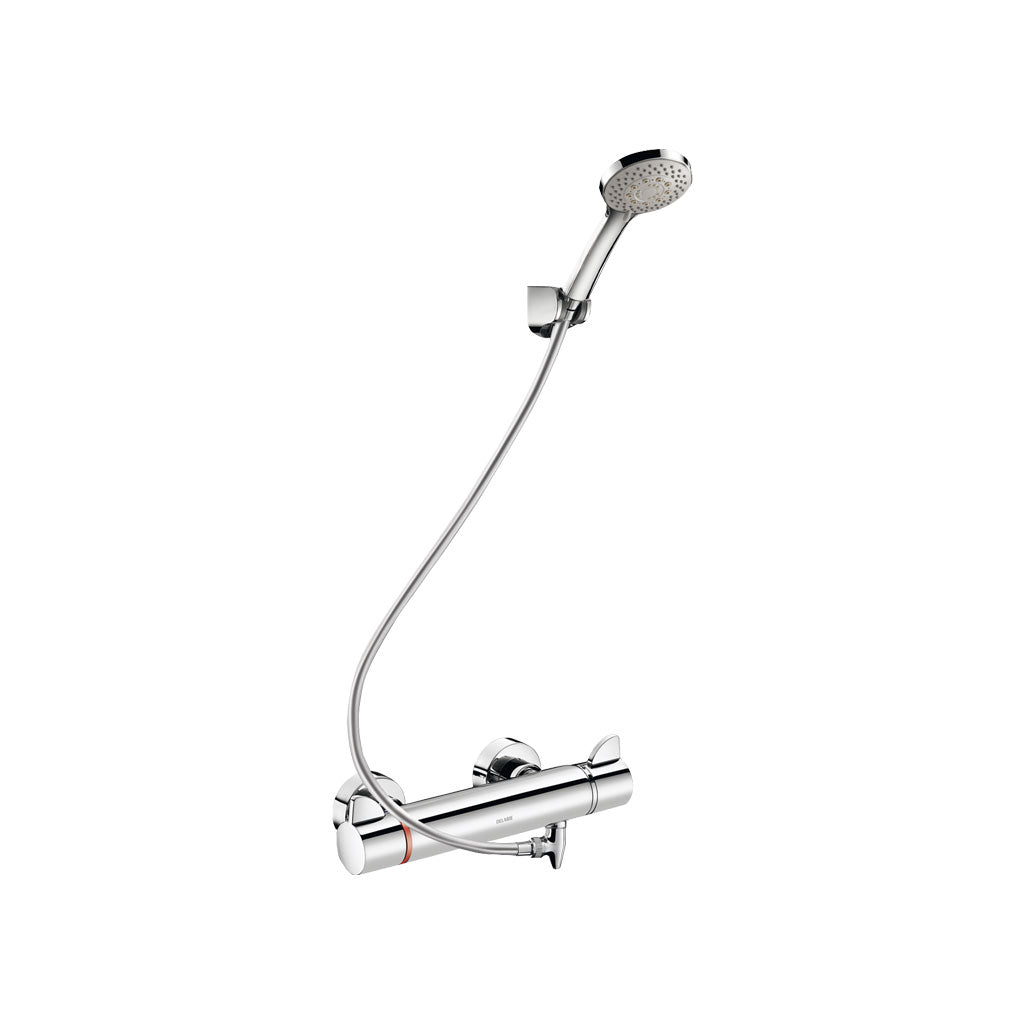

SECURITHERM thermostatic Securitouch shower kit with automatic purge
Securitouch thermostatic dual control mixer
SECURITHERM thermostatic dual control shower kit with automatic purge.
• Shower mixer with thermostatic anti-scale cartridge:
Mixer with anti-scalding safety: automatic shutdown if cold water supply fails.
Anti "cold shower" function: automatic shutdown if hot water supply fails.
Securitouch thermal anti-scalding insulation.
Thermostatic anti-scale cartridge for temperature control.
Quarter-turn ceramic cartridge for flow control.
Adjustable temperature: from 25°C to 41°C.
Double temperature limit: 1st, unlockable, at 38°C; 2nd locked at 41°C.
Thermal flushing is easily carried out without disassembling the handle and without cutting off the cold water supply.
Flow rate set at 9 l/min.
Chromed brass body and ERGO handles.
Shower outlet M1/2".
Filters and non-return valves integrated in the F3/4" inlets.
Mixer with standard S-connections M1/2" M3/4".
• Hand shower (ref. 813) and swivel chromed wall bracket (ref. 845).
• Anti-stagnation fitting FM1/2" for automatic purging of the hand shower and shower hose (limits bacterial growth) (ref. 880).
Mixer ideal for care facilities, hospitals and clinics.
Mixer suitable for people with reduced mobility.
Mixer with 30-year warranty.

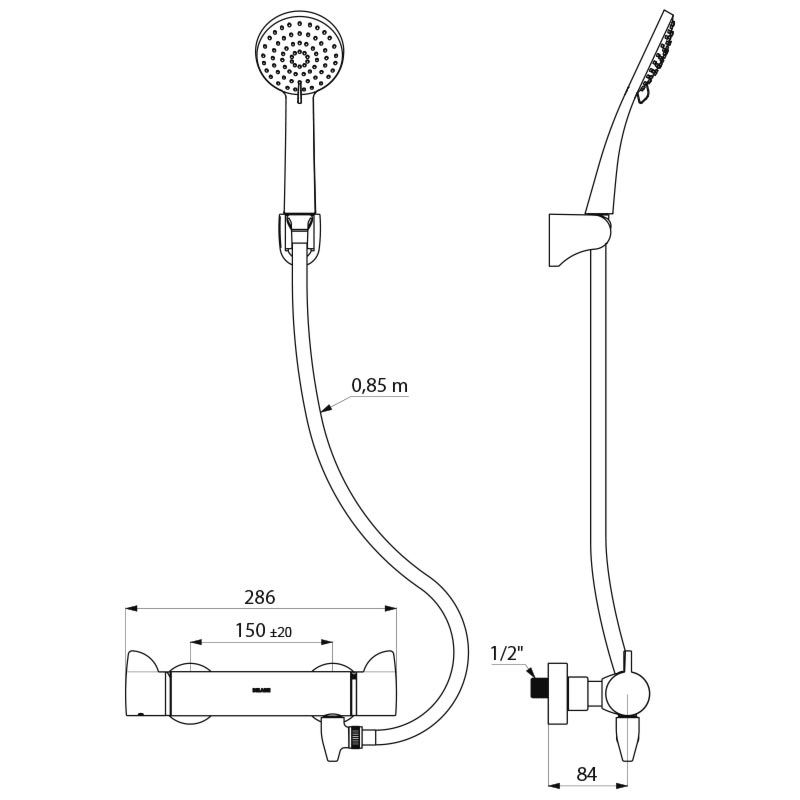

| Connection | M1/2" |
| Technology | SECURITHERM thermostatic mixer, Securitouch |
| Depth | 84 mm |
| Length | 286 mm |
| Flow rate | 9 l/min |
| Temperature limitation | Yes |
| Finish | Chromed brass |
| Standards and certificates |
|
| Warranty | |
| Repair warranty | ![]() |
Specifications
| Article number | 8146H9741SHYG |
|---|---|
| Brand | Delabie |
| Weight | 2.672 kg |
| Operation | 2-greeps |
| Colour | Chrome |
| Material | Brass |
| Assembly | Wall-mounted |
| Finish | Verchroomd hoogglans |
