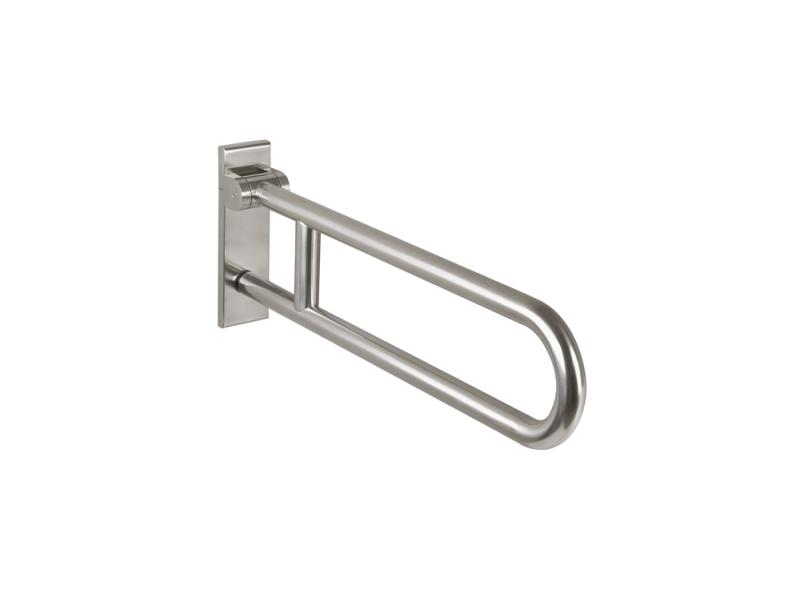

Hinged support rail from the 805 classic series
- Two parallel bars, one above the other, connected by a connecting bend (formed from a continuous tube)
- Used for holding and support - Wall plate made of polyamide with integrated steel core
- Can be folded up and folded down in a controlled manner
- Wall mounting with wall-specific HEWI fastening material (to be ordered separately)
- sealing tape for sealing the fixing points is included in the scope of delivery
- Concealed fastening
- tested up to 150 kg when used with HEWI fastening material
- Recommended maximum user weight: 150 kg
- Projection 850 mm, 259 mm wide and 78 mm high, bar diameter 33 mm, tube thickness 2 mm
- Made of high-quality stainless steel, matt brushed surface
- Toilet roll holder 805.50.015 and toilet flush release (radio) 805.50.060 and floor supports 950.50.022XA and 950.50.024XA can be retrofitted.
- Manufactured in accordance with the CE and UKCA regulation (EU) 2017/745 on medical devices
- Meets the requirements of DIN 18040, ÖNORM B1600/1601 and SIA 500
Specifications
| Article number | 84280550220 |
|---|---|
| Brand | HEWI |
| Weight | 5.02 kg |
| Colour | Stainless steel |
| Material | Stainless steel |
| Assembly | Surface mounted |
| Collection | HEWI Serie 805 |
| Finish | Geborsteld |
