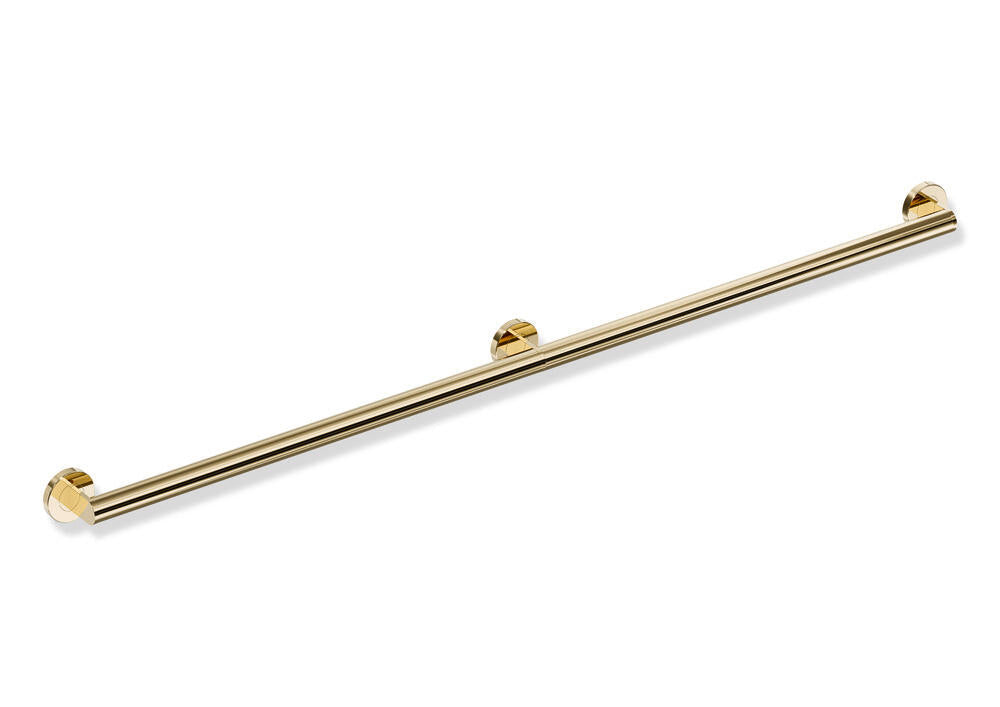

Wall rail with additional center support, System 900
- straight rail with wall mounts and rosettes at right angles to the wall
- center-to-center dimension 52 inch (1321 mm), 2 3/4 inch (70 mm) deep
- Rail diameter 1 1/4 inch (32 mm), Tube thickness 1/16 inch (2 mm), Rosette diameter 2 3/4 inch (70 mm)
- can be loaded with up to 330 lbs (150 kg)
- made of high-quality stainless steel, PVD coating
- includes corrosion-free and tested HEWI fixing material for wall mounting and sealing tape for sealing the drill holes
- fulfills the requirements of the 2010 ADA Standards and ICC/ANSI A117.1-2017
Specifications
| Article number | 8429003606870.CK |
|---|---|
| Brand | HEWI |
| Weight | 2.5 kg |
| Colour | Brass |
| Material | Stainless steel |
| Assembly | Surface mounted |
| Collection | HEWI Systeem 900 |
| Finish | PVD-coating glanzend |
