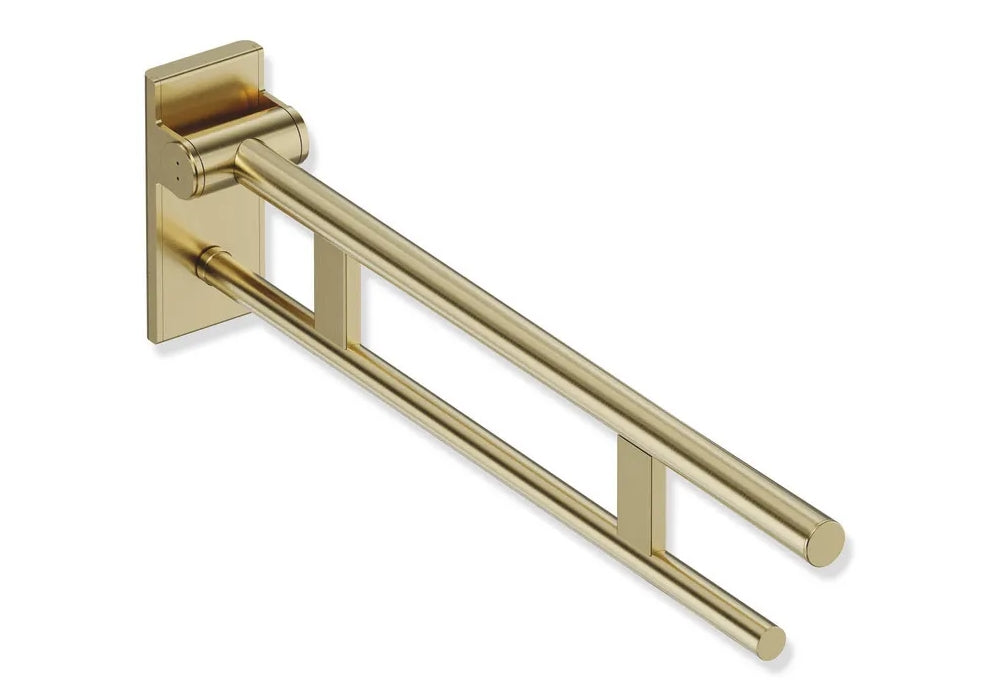

Folding support rail Duo, Design (A), System 900
- Two parallel, superposed round grip sections
- Can be folded upwards and braked downwards
- Projection 750 mm, 210 mm wide and 101 mm high, Diameter upper rail 33.7 mm, Diameter lower rail 25 mm
- made of high-quality stainless steel, PVD coating
- for mounting with corrosion-free and tested HEWI fastening material for various wall mounts (to be ordered separately)
- sealing tape for sealing the mounting points is included in the scope of delivery
- tested up to 150 kg when used with HEWI fastening material
- Recommended maximum user weight: 150 kg
- Floor supports 900.50.02070 and 900.50.02170 can be retrofitted.
- is manufactured in accordance with CE and UKCA Regulation (EU) 2017/745 on medical devices
- complies with the requirements applicable in Belgium (CWATUPE, WVG Flanders) regarding the projection of the folding support handle on the WC
Specifications
| Article number | 8429005010370.LP |
|---|---|
| Brand | HEWI |
| Weight | 5.13 kg |
| Colour | Brass |
| Material | Stainless steel |
| Assembly | Surface mounted |
| Collection | HEWI Systeem 900 |
| Finish | PVD-coating geborsteld |
