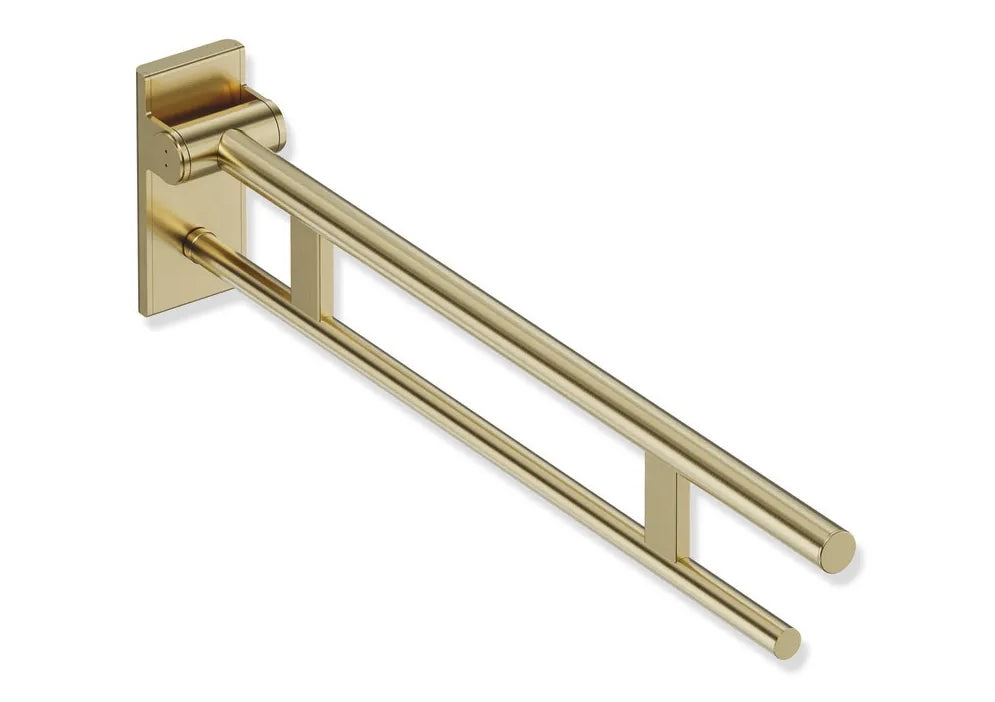

Fold-up support rail Duo, Design (A), System 900
- Two parallel, superimposed round grip sections
- Can be folded up and braked down
- Projection 850 mm, 210 mm wide and 101 mm high, Top rail diameter 33.7 mm, Bottom rail diameter 25 mm
- Made of high-quality stainless steel, PVD coated
- For mounting with corrosion-free and tested HEWI fixing material for various wall constructions (to be ordered separately)
- Sealing tape for sealing the fixing points is included in the scope of delivery
- Tested up to 150 kg when used with HEWI fixing material
- Recommended maximum user weight: 150 kg
- Floor supports 900.50.02070 and 900.50.02170 can be retrofitted.
- Manufactured in accordance with CE and UKCA Regulation (EU) 2017/745 on medical devices
- Complies with the requirements of DIN 18040, ÖNORM B1600/1601 and SIA 500
Specifications
| Article number | 8429005010470.LP |
|---|---|
| Brand | HEWI |
| Weight | 5.38 kg |
| Colour | Brass |
| Material | Stainless steel |
| Assembly | Surface mounted |
| Collection | HEWI Systeem 900 |
| Finish | PVD-coating geborsteld |
