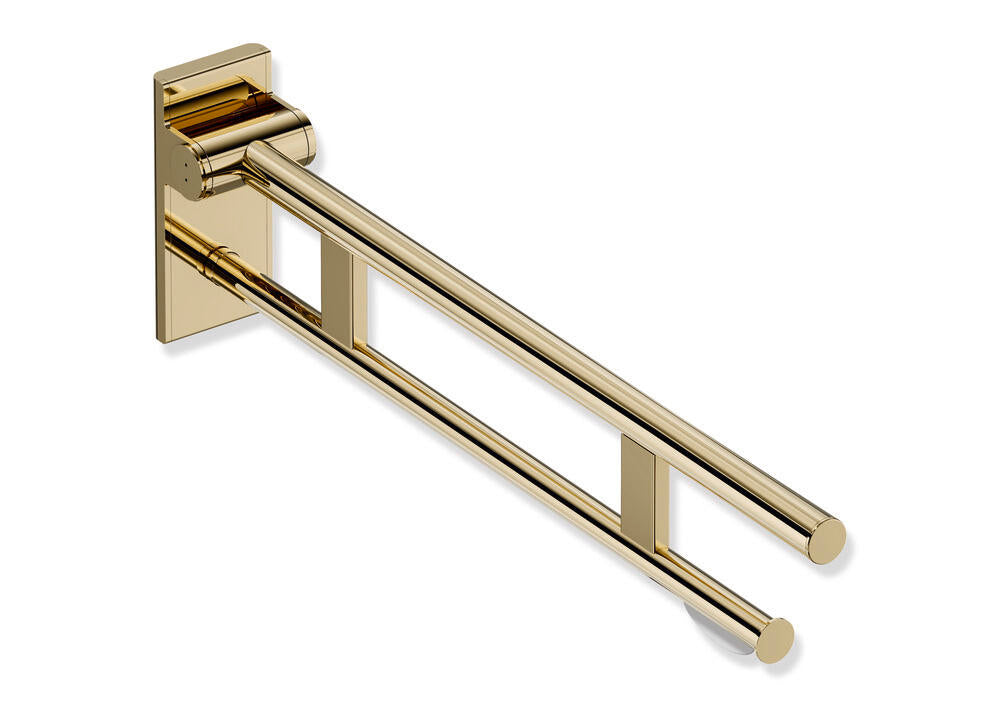

Folding support rail Duo, Design (A), System 900
- Two parallel, superimposed round grip sections
- with toilet roll holder and wireless flush release
- left-hand version
- Can be folded upwards and braked downwards
- Blue button (wave symbol) is used to activate the toilet flush
- Transmitting frequency 868.4 MHz
- Suitable for wireless WC flushing systems from Geberit, Mepa, Viega, Sanit, Friatec, TECE and Grohe
- Swivel range 700 mm, 210 mm wide and 101 mm high, Upper rail diameter 33.7 mm, Lower rail diameter 25 mm
- made of high-quality stainless steel, PVD coating
- for mounting with corrosion-free and tested HEWI fixing material for various wall mounts (to be ordered separately)
- sealing tape for sealing the fixing points is included in the delivery
- tested up to 150 kg when used with HEWI fixing material
- Recommended maximum user weight: 150 kg
- Floor supports 900.50.02070 and 900.50.02170 can be retrofitted.
- has been manufactured in accordance with the CE and UKCA regulation (EU) 2017/745 concerning medical devices
- Complies with the requirements according to ÖNORM B1600/1601 and SIA 500
Specifications
| Article number | 8429005011070.CK |
|---|---|
| Brand | HEWI |
| Weight | 5.11 kg |
| Colour | Brass |
| Material | Stainless steel |
| Assembly | Surface mounted |
| Collection | HEWI Systeem 900 |
| Finish | PVD-coating glanzend |
