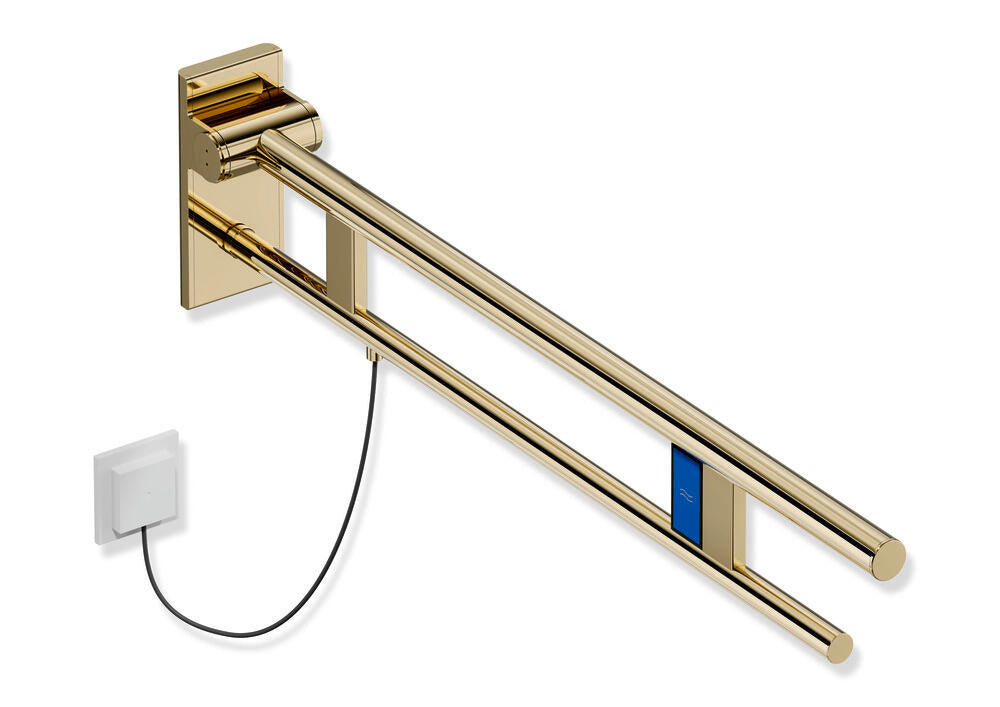

Folding support rail Duo, Design (A), System 900
- Two parallel, superimposed round grip sections
- with flush release (electrical version)
- left-hand version
- Can be folded upwards and braked downwards
- Blue button (wave symbol) is used to activate the toilet flush
- Cable with free cable ends for wall connection
- incl. white cover for flush-mounted box
- Control voltage max. 30 V = SELV, PELV, switching current up to max. 2 A
- suitable for all common flush-mounted cisterns with electrical control
- Projection 900 mm, 210 mm wide and 101 mm high, Diameter upper rail 33.7 mm, Diameter lower rail 25 mm
- made of high-quality stainless steel, PVD coating
- for mounting with corrosion-free and tested HEWI fixing material for different wall mountings (to be ordered separately)
- sealing tape for sealing the fixing points is included in the delivery
- tested to 150 kg when used with HEWI fixing material
- Recommended maximum user weight: 150 kg
- Floor supports 900.50.02070 and 900.50.02170 can be retrofitted.
- has been manufactured in accordance with CE and UKCA Regulation (EU) 2017/745 on medical devices
- complies with the requirements according to ÖNORM B1600/1601
Specifications
| Article number | 8429005014570.CK |
|---|---|
| Brand | HEWI |
| Weight | 5.65 kg |
| Colour | Brass |
| Material | Stainless steel |
| Assembly | Surface mounted |
| Power suply | Netvoeding |
| Collection | HEWI Systeem 900 |
| Finish | PVD-coating glanzend |
