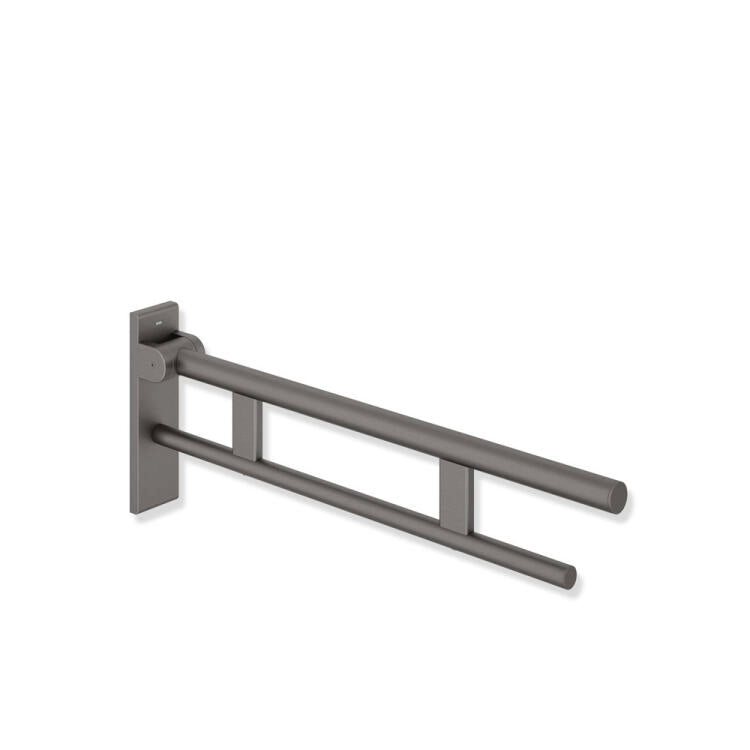

Hinged support rail Duo, Design (B), System 900
- Two parallel, superimposed round grip sections
- Can be folded up and braked down
- Projection 700 mm, 256 mm wide and 75 mm high, Diameter of upper rail 33.7 mm, Diameter of lower rail 25 mm
- made of high-quality stainless steel, powder-coated in HEWI colours DX (matt white), DC (matt black) and SC (matt dark grey pearl mica)
- Wall plate made of polyamide with integrated steel core and stainless steel cover plate, powder-coated in HEWI colours DX (matt white), DC (matt black) and SC (matt dark grey pearl mica)
- for mounting with corrosion-free and tested HEWI fastening material for various wall mounts (to be ordered separately)
- sealing tape for sealing the fastening points is included in the scope of delivery
- tested up to 150 kg when used with HEWI fastening material
- Recommended maximum user weight: 150 kg
- Floor supports 900.50.02060 and 900.50.02160 can be retrofitted.
- manufactured in accordance with the CE and UKCA regulation (EU) 2017/745 on medical devices
- Complies with the requirements according to ÖNORM B1600/1601 and SIA 500
Specifications
| Article number | 8429005015960.SC |
|---|---|
| Brand | HEWI |
| Weight | 4.236 kg |
| Colour | Matt dark grey pearl mica |
| Material | Stainless steel |
| Assembly | Surface mounted |
| Collection | HEWI Systeem 900 |
| Finish | Poedercoating mat |
