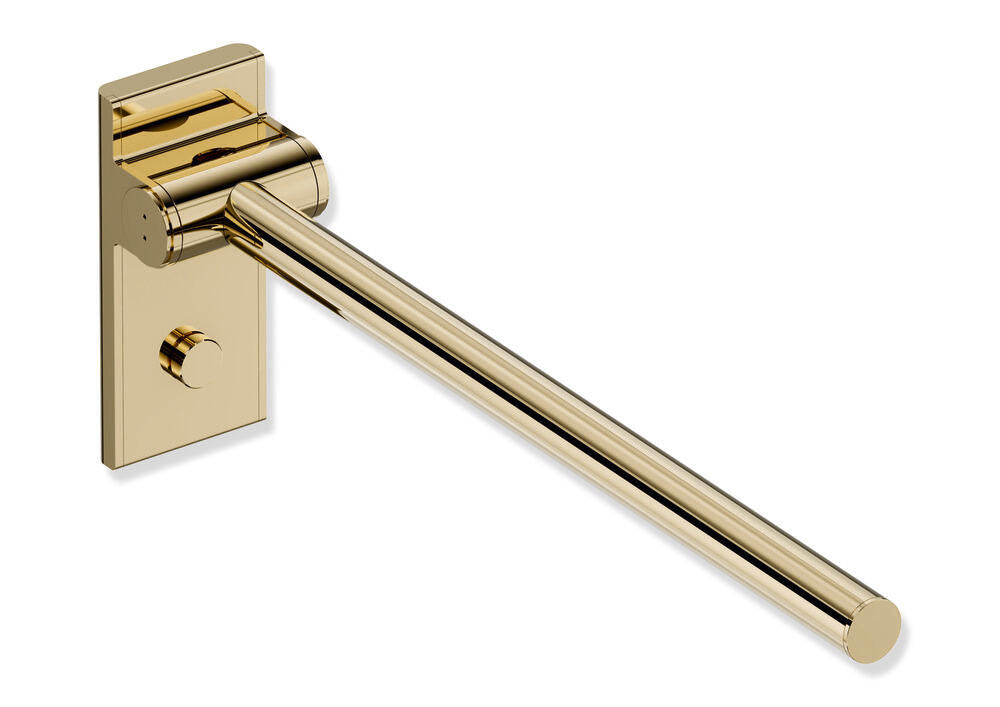

Mobile hinged support rail Mono, Design (A), System 900
- with a horizontal, circular, level grab bar
- Can be folded upwards and braked downwards
- mobile use
- for easy and flexible retrofitting on existing, pre-assembled mounting plate 900.50.00170, to be ordered separately
- tool-free and quick installation by simply hanging the hinged support rail
- secured against unintentional detachment with fixing screws
- tested up to 150 kg when used with HEWI fastening material
- Recommended maximum user weight: 150 kg
- Projection 600 mm, 210 mm wide and 101 mm high, rod diameter 33.7 mm
- made of high-quality stainless steel, PVD coated
- manufactured in accordance with CE and UKCA Regulation (EU) 2017/745 on medical devices
- Complies with the requirements of DIN 18040
Specifications
| Article number | 8429005040070.CK |
|---|---|
| Brand | HEWI |
| Weight | 4.195 kg |
| Colour | Brass |
| Material | Stainless steel |
| Assembly | Surface mounted |
| Collection | HEWI Systeem 900 |
| Finish | PVD-coating glanzend |
