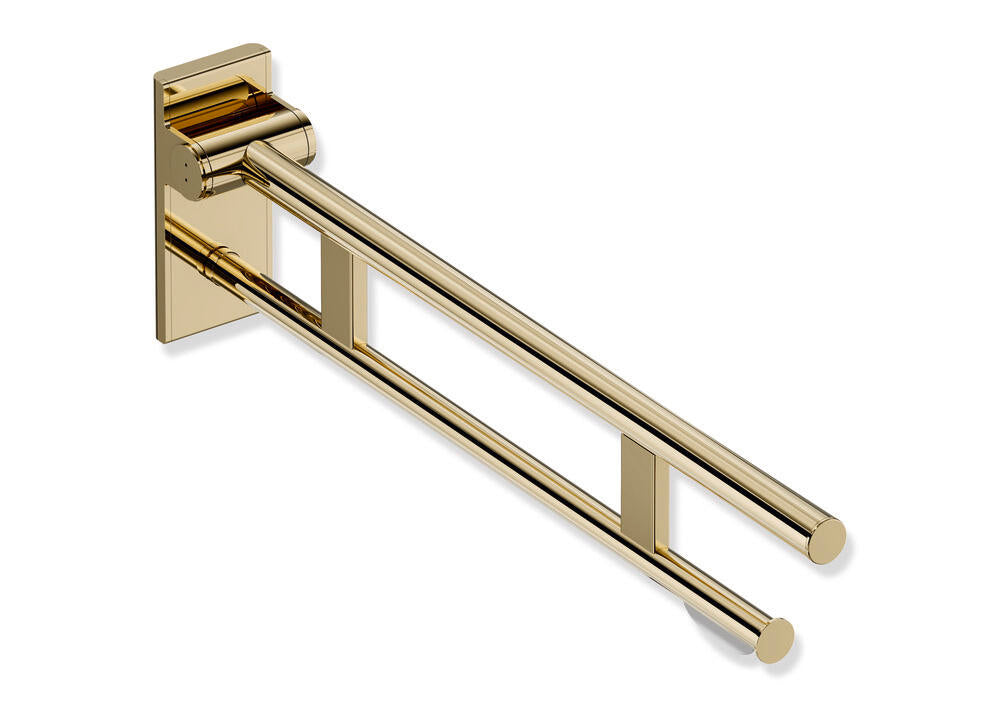

Mobile hinged support rail Duo, Design (A), System 900
- two parallel, superimposed round grip sections
- with toilet roll holder
- can be folded up and down with braking mechanism
- can be used mobile
- for simple and flexible retrofitting onto existing, pre-assembled mounting plate 900.50.00170, must be ordered separately
- tool-free and quick installation by simply hanging the folding support
- secured against unintentional detachment with fastening screws
- tested to 150 kg when used with HEWI fastening material
- Recommended maximum user weight: 150 kg
- Projection 750 mm, 210 mm wide and 101 mm high, upper rail diameter 33.7 mm, lower rail diameter 25 mm
- made of high-quality stainless steel, PVD coated
- Floor supports 900.50.02070 and 900.50.02170 can be retrofitted.
- is manufactured in accordance with the CE and UKCA Regulation (EU) 2017/745 on medical devices
- meets the requirements applicable in Belgium (CWATUPE, WVG Flanders) regarding the projection of the folding support handle on the toilet
Specifications
| Article number | 8429005040770.CK |
|---|---|
| Brand | HEWI |
| Weight | 5.16 kg |
| Colour | Brass |
| Material | Stainless steel |
| Assembly | Surface mounted |
| Collection | HEWI Systeem 900 |
| Finish | PVD-coating glanzend |
