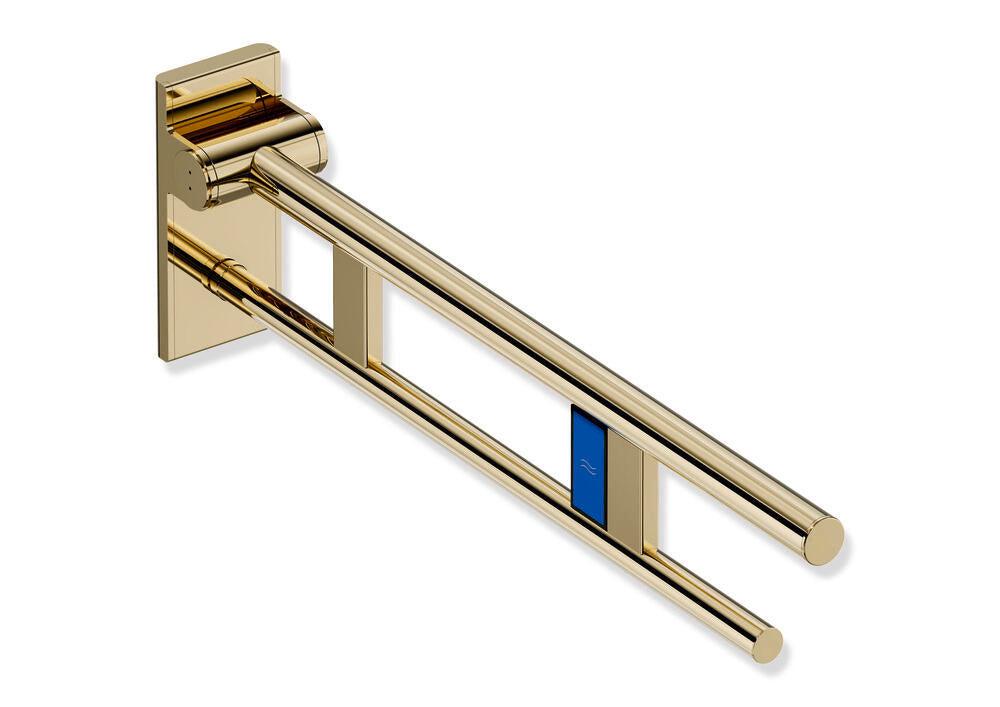

Mobile hinged support rail Duo, Design (A), System 900
- Two parallel, superimposed round grip sections
- with radio flush release
- left-hand version
- Can be folded upwards and braked downwards
- mobile use
- for easy and flexible retrofitting to existing, pre-assembled mounting plate 900.50.00170, to be ordered separately
- tool-free and quick installation by simply hanging the hinged support rail
- secured against unintentional pulling out with fixing screws
- tested up to 150 kg when used with HEWI fixing material
- Recommended maximum user weight: 150 kg
- Blue button (wave symbol) is used to activate the toilet flush
- Transmitting frequency 868.4 MHz
- Suitable for wireless WC flushing systems from Geberit, Mepa, Viega, Sanit, Friatec, TECE and Grohe
- Projection 700 mm, 210 mm wide and 101 mm high, Diameter upper rail 33.7 mm, Diameter lower rail 25 mm
- made of high-quality stainless steel, PVD coated
- Floor supports 900.50.02070 and 900.50.02170 can be retrofitted.
- produced in accordance with the CE and UKCA regulation (EU) 2017/745 on medical devices
- Complies with the requirements according to ÖNORM B1600/1601 and SIA 500
Specifications
| Article number | 8429005041870.CK |
|---|---|
| Brand | HEWI |
| Weight | 5.11 kg |
| Colour | Brass |
| Material | Stainless steel |
| Assembly | Surface mounted |
| Collection | HEWI Systeem 900 |
| Finish | PVD-coating glanzend |
