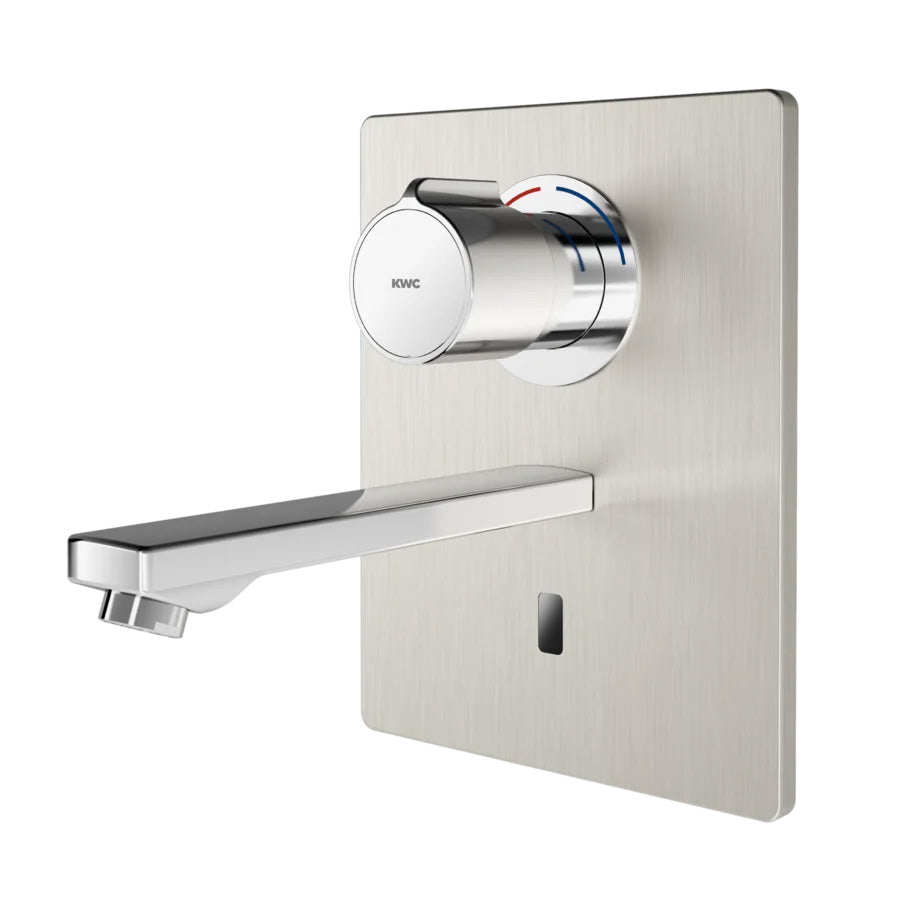

F5E-Therm thermostat mixer DN 15 as a finishing set for wall mounting in the basic set, for washbasins. Opto-electronically controlled, for connection to hot and cold water. Functional block with integrated solenoid valve, thermostat and device for optional bypass solenoid valve for performing program-controlled thermal disinfection. Thermostat with metal handle with adjustable and anti-rotation protected temperature stop and possibility for performing manual thermal disinfection. Visible parts brass polished chrome-plated. With mounting frame with profile seal, stainless steel cover plate 190 x 245 mm with concealed screw fastening including sensor with control electronics, rose, backflow preventers and strainers. Outlet with laminar jet regulator with integrated flow regulator 6.0 l/min. Spout projection 140 mm, depth adjustment 25 mm. Activated hygienic flush 24 hours after last use, safety cut-out in case of continuous reflection and storage of statistical data. With possibility for parameterization and communication via optional bidirectional remote control. Separate power supply via mains power supply 6.75 V / 12 V DC or AQUA 3000 open system accessories.
Specifications
| Article number | 8102030038681 |
|---|---|
| Brand | KWC |
| Weight | 4.533 kg |
| Operation | Touchless |
| Colour | Chrome |
| Material | Stainless steel |
| Assembly | Wall-mounted |
| Power suply | Netvoeding |
| Collection | KWC Professional F5 |
| Finish | Verchroomd hoogglans |
