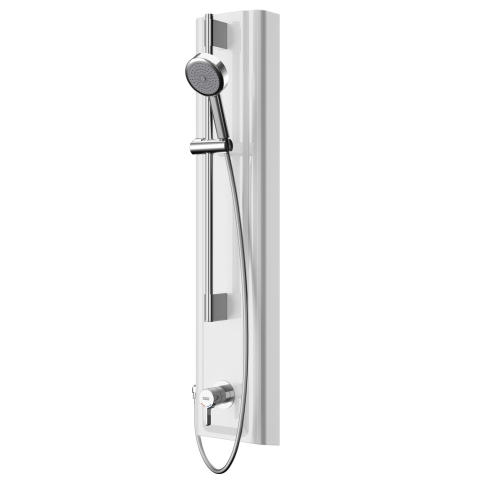

F5L-Therm shower panel made of mineral material for surface mounting with single-lever thermostat DN 15 and hand shower. For connection to cold and hot water. Functional block with integrated mixing cartridge and pre-assembled hygienic unit including sensor with control electronics, for performing automatic hygienic flushing, program-controlled thermal disinfection (additional bypass cartridge with solenoid valve required) and storage of statistical data. Thermostatically controlled mixing cartridge with expansion element and active scald protection as well as adjustable, anti-twist temperature stop and ceramic disc technology. Fully metal construction, visible parts polished and chrome-plated. Pre-assembled shower rail, with height-adjustable hand shower holder and chrome-plated plastic hand shower, shower base with rain jet, diameter 110 mm, shower hose 900 mm, housing with high-quality functional surface, made of resin-bonded mineral granite MIRANIT, with pore-free smooth surface (temperature resistant up to 80 °C), alpine white colour. Connection hoses with lockable flow regulators with non-return valve and strainer. Activated hygienic flush, fixed interval time 24 hours. With option for parameterisation and communication via optional bidirectional remote control. Hygienic unit optionally for battery operation with 6 V lithium battery (CR-P2) per fitting or separate power supply via mains adapter 6.75 V / 12 V DC.
Housing dimensions 235 x 1160 x 100 mm (W x H x D)
Battery compartment incl. battery or power supply incl. extension cable must be ordered separately.
Specifications
| Article number | 8102030066544 |
|---|---|
| Brand | KWC |
| Weight | 13.7 kg |
| Operation | Eengreeps |
| Colour | White |
| Material | MIRANIT |
| Assembly | Surface mounted |
| Power suply | Batterijen |
| Collection | KWC Professional F5 |
| Finish | Verchroomd hoogglans |
