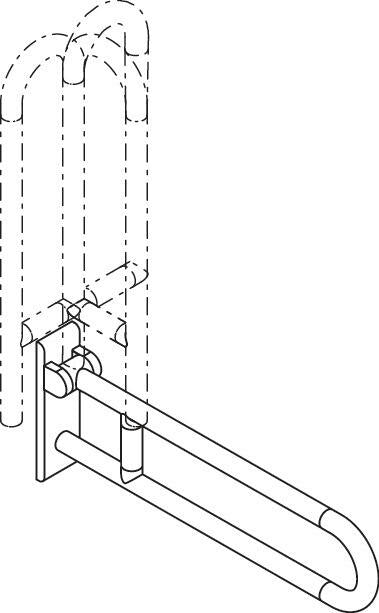

Folding support rail, swivelling, from the 801 series
- Two parallel, superimposed rails connected by a connecting bend
- used for holding and support - with continuous, corrosion-resistant steel core and wall plate made of polyamide with integrated steel core
- Can be folded upwards and braked downwards and, when folded up, pivoted left or right towards the wall
- Wall mounting with wall-specific HEWI fixing material (to be ordered separately)
- sealing tape for sealing the fixing points is included in the scope of supply
- Concealed fixing
- tested to 150 kg when used with HEWI fixing material
- Recommended maximum user weight: 150 kg
- Projection 700 mm, 259 mm wide and 78 mm high, rod diameter 33 mm
- made of high-gloss polyamide according to HEWI colour chart
- Toilet roll holder 801.50.011, toilet flush (radio) 801.50.060 and floor supports 950.50.021XA and 950.50.023XA can be retrofitted
- is manufactured in accordance with the CE and UKCA Regulation (EU) 2017/745 on medical devices
- Meets the requirements according to ÖNORM B1600/1601 and SIA 500
Specifications
| Article number | 84280150110.50 |
|---|---|
| Brand | HEWI |
| Weight | 4.569 kg |
| Colour | Steel blue |
| Material | Steel core+polyamide |
| Assembly | Surface mounted |
| Collection | HEWI Serie 801 |
| Finish | Hoogglans |
