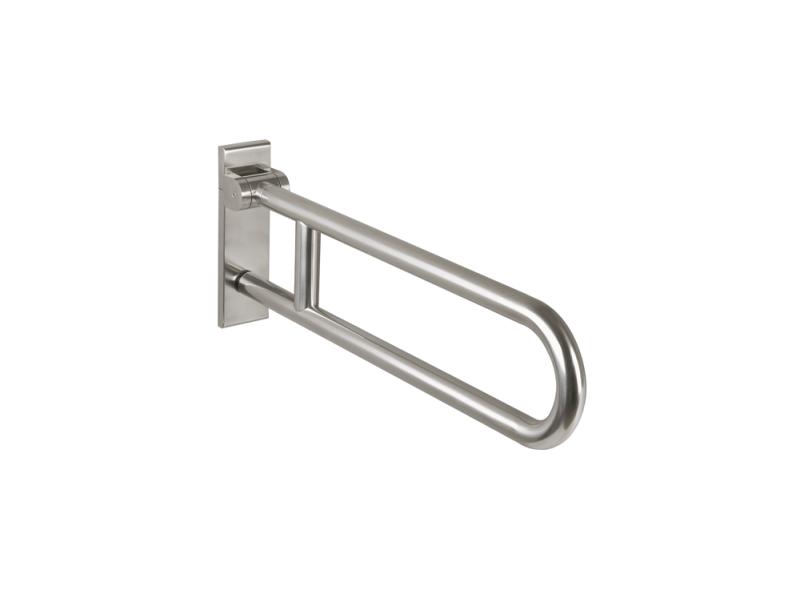

Folding support from the 805 classic series
- Two parallel, superimposed bars connected by a connecting bend (formed from a continuous tube)
- Used for holding and supporting - Wall plate made of polyamide with integrated steel core
- Can be folded upwards and braked downwards
- Wall mounting with wall-specific HEWI mounting material (to be ordered separately)
- Sealing tape for sealing the mounting points is included in the delivery
- Concealed mounting
- Tested up to 150 kg when used with HEWI mounting material
- Recommended maximum user weight: 150 kg
- Swivel range 900 mm, 259 mm wide and 78 mm high, bar diameter 33 mm, tube thickness 2 mm
- Made of high-quality stainless steel, surface matt brushed
- Toilet roll holder 805.50.015 and toilet flush release (radio) 805.50.060 and floor supports 950.50.022XA and 950.50.024XA can be retrofitted.
- Manufactured in accordance with the CE and UKCA regulation (EU) 2017/745 concerning medical devices
- Complies with the requirements according to ÖNORM B1600/1601
Specifications
| Article number | 84280550230 |
|---|---|
| Brand | HEWI |
| Weight | 6.4 kg |
| Colour | Stainless steel |
| Material | Stainless steel |
| Assembly | Surface mounted |
| Collection | HEWI Serie 805 |
| Finish | Geborsteld |
